BIBI 26 HE
Compact Lifts

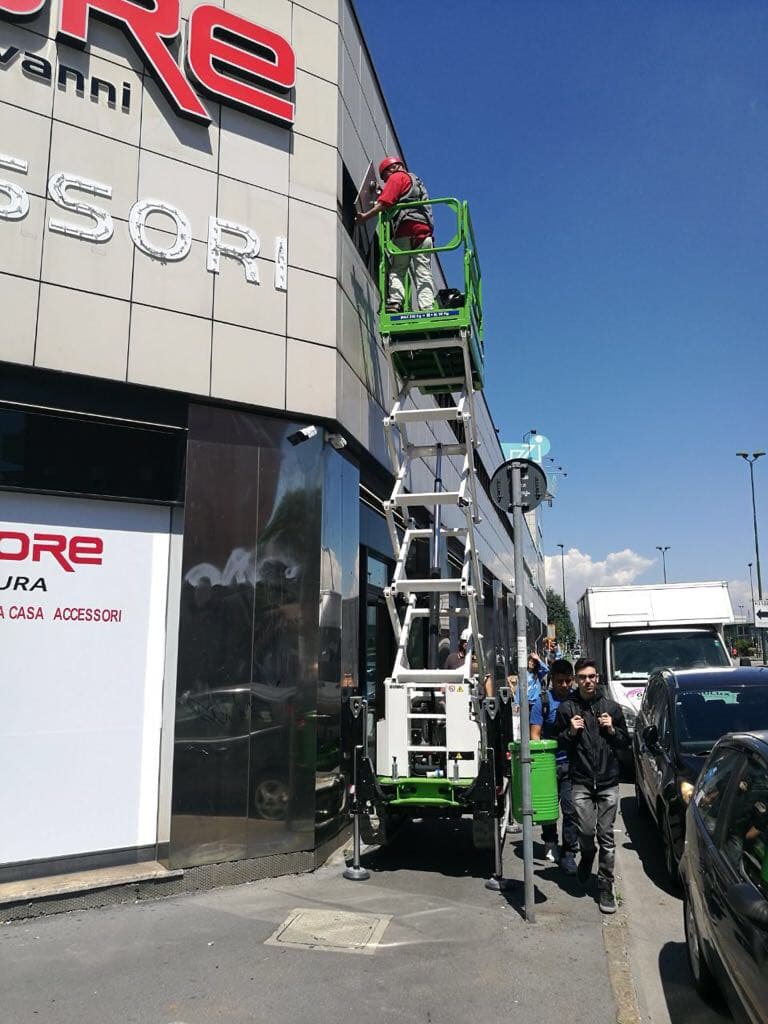

The BIBI Lift 26HE is the first scissor lift that can both drive and set up on soft and uneven surfaces. Thanks to the adjustable and unique tracks the unit can go places no other lift can, even through a single door! The outrigger system ensures maximum stability and provides safe operation up to 14° […]
TYPE
Compact Lifts
MODEL SERIES
BIBI
Product Overview
The BIBI Lift 26HE is the first scissor lift that can both drive and set up on soft and uneven surfaces. Thanks to the adjustable and unique tracks the unit can go places no other lift can, even through a single door! The outrigger system ensures maximum stability and provides safe operation up to 14° rear and 13° front sloping, as well as a staggering 23° side slope. Other features include:
– Automatic leveling and inclination control
– Slide-out basket extension
– Adjustable tracks
– All-terrain driving capabilities
Specifications
Standard Equipment
- Tracked scissor lift
- Single Door Access
- Outriggers
- Bi-leveling tracks
- Honda engine
- Non marking tracks
- Basket capacity – 550lbs
- Expandable basket
- Remote control
Performance
| Working height | 25ft8in |
| Max height basket floor | 19ft2in |
| Moving height | 13ft2in |
| Basket load-max | 550lbs |
| Basket dims | 4ft11in x 2ft8in |
| Basket leveling | Automatic |
| Front leveling | +/- 16° |
| Rear leveling | +/- 20° |
| Side leveling | +/- 15° |
Dimensions
| Height – folded railings | 6ft2in |
| Height – tracks wide position | 7ft9in |
| Height – tracks narrow position | 7ft9in |
| Length | 7ft |
| Width tracks | 2ft7in – 4ft1in |
| Weight (approx) | 4400 lbs |
| Drive gradeability | 25° |
| Side Slope | 21° |
Power Source
| Honda | Standard |
| Hatz Diesel | Option |
Reach Envelope
