Material Handling Lasius 2200

Lasius 2200

Material Handling
Winlet Lasius 2200 – when time is money The Winlet Lasius 2200 (avail as 1950 as well) is a revolutionary new so-called PCC unit (pick & carry crane) based on the proven technology found on the Winlet vacuum lifts. The Lasius 2200 is designed to give traditional cranes and handling solutions a serious run for their […]
TYPE
Material Handling
MODEL SERIES
Lasius

Product Overview

Winlet Lasius 2200 – when time is money

The Winlet Lasius 2200 (avail as 1950 as well) is a revolutionary new so-called PCC unit (pick & carry crane) based on the proven technology found on the Winlet vacuum lifts. The Lasius 2200 is designed to give traditional cranes and handling solutions a serious run for their money.

Thanks to decades of experience with the Winlet technology, developing a compact yet strong PCC was an obvious extension of the product range, and the Lasius 2200 is placed in a market segment that is below the usual 2 tons units which often are too heavy and big for efficient use on job sites. The efficiency of moving materials safely and quickly around on a job site or in a building is directly reflected in savings of time and resources.

Thanks to its battery power source it is equally efficient in-as outdoor

The list of applications for the Winlet Lasius 2200 is endless and the below examples is merely a small sample of situations where the Winlet Lasius 2200 will make a big difference:

  • Erecting steel beams and other building elements
  • Glass and facade installation
  • Machine assembly
  • Repair work and/or replace heavy components
  • Packing of non-palletized goods in containers
  • Moving & installing artwork in museums or exhibition centers
  • Power plant maintenance

Why the strange name “Lasius”?

Lasius is a Latin name for a small, but incredibly strong and persistent species of ants.

As we all know, ants very are small, can get through even the smallest passages with everything they can carry, and despite their minute size, they are incredible strong and persistent. They never give up, they never complain and they work around the clock!

The Winlet Lasius 2200 has the very same characteristics making the name fittingly and well deserved.

Specifications

Standard Equipment

  • Pick and Carry Crane – Max 2200 lbs
  • Support (catch) wheels
  • Battery operated
  • Self-propelled
  • Remote Control

OPTIONAL

  • Twin wheels for rough terrain
  • Lifting Sling
  • Radio remote control

Performance

Max Lifting capacity 2204lb
Max load -max extension 440lb
Max Lifting height 13ft1in
Batteries 2 X 150 AH
Max Speed 2.5 mph

Dimensions

Height 5ft7in
Length Stowed 8ft2in
Width 2ft10in
Weight 2921lb

Power Source

Batteries Standard

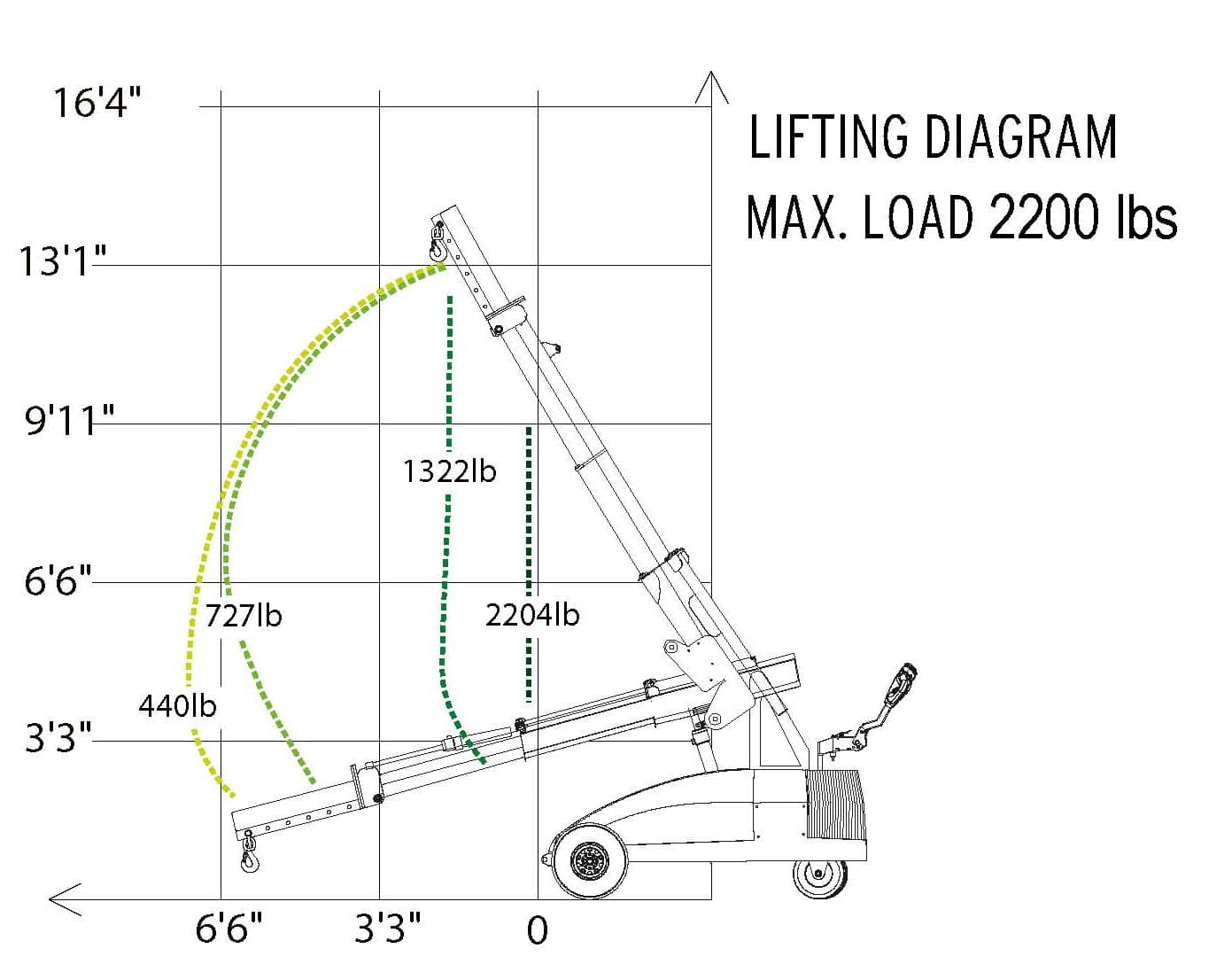

Reach Envelope
