Winlet 1265
Glass Handling, Material Handling
Glass Manipulator -Winlet 1265 Max Lifting Capacity – 1265 lbs Overall Width – 2ft 11in Max Extension – 5ft 11in Tilt Function – 180° Max Lifting Height – 11ft 10in The Winlet 1265 increases efficiency and speed in glass and window installation while improving safety in the workplace. The Winlet 1265 features 4 hydraulically controlled […]
TYPE
Glass Handling, Material Handling
MODEL SERIES
Winlet
Product Overview

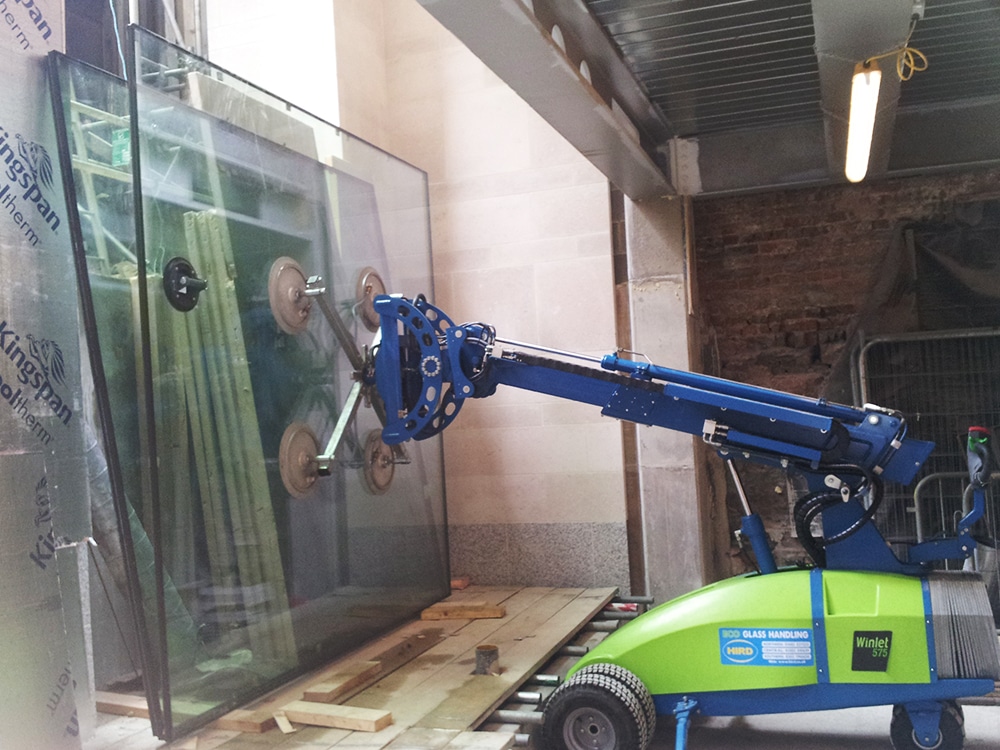

Glass Manipulator -Winlet 1265
Max Lifting Capacity – 1265 lbs
- Overall Width – 2ft 11in
- Max Extension – 5ft 11in
- Tilt Function – 180°
- Max Lifting Height – 11ft 10in
The Winlet 1265 increases efficiency and speed in glass and window installation while improving safety in the workplace. The Winlet 1265 features 4 hydraulically controlled suction cups which will hold up to 1265 lbs. of material. The Winlet will carry any types of air tight material including: granite, concrete, steel, aluminum, wooden plates, tiles and fire doors just to name a few.
Other features of the Winlet include:
- Self propelled
- Access narrow doorways, elevators and balconies
- Twin wheels for rough terrain operation
- User friendly and easy to transport
Specifications
Standard Equipment
- Single door access
- Battery operated
- Remote control
- 100% Linear movement in the front
- Gyro system
- Self-propelled
- 100% Hydraulic movements provide highly proportional control and ultra-precise adjustments
- Double action safety keys
Performance
| Max Lifting capacity | 1265lb |
| Max load @max extension | 605lb |
| Max lifting height | 11ft10in |
| Tilt function | 180° |
| Batteries | 2 X 150 AH |
| Operating hours |
12 hours-Fully charged
|
| Charging time | 10-12 Hours |
Dimensions
| Height | 5ft3in |
| Length Stowed | 6ft2in |
| Width | 2ft11in |
| Weight | 2864lb |
| Suction cups | 4 |
| Size | 4 X 13-3/4in |
| Front wheel drive |
24V AC transaxle
|
Power Source
| Batteries | Standard |
